M5Stack Official Display Module 13.2

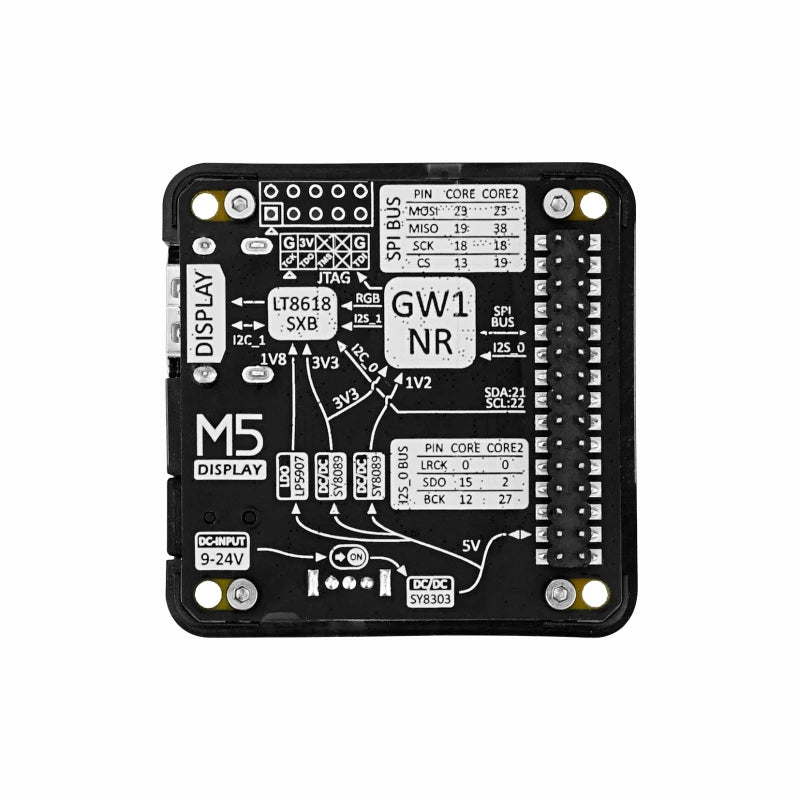

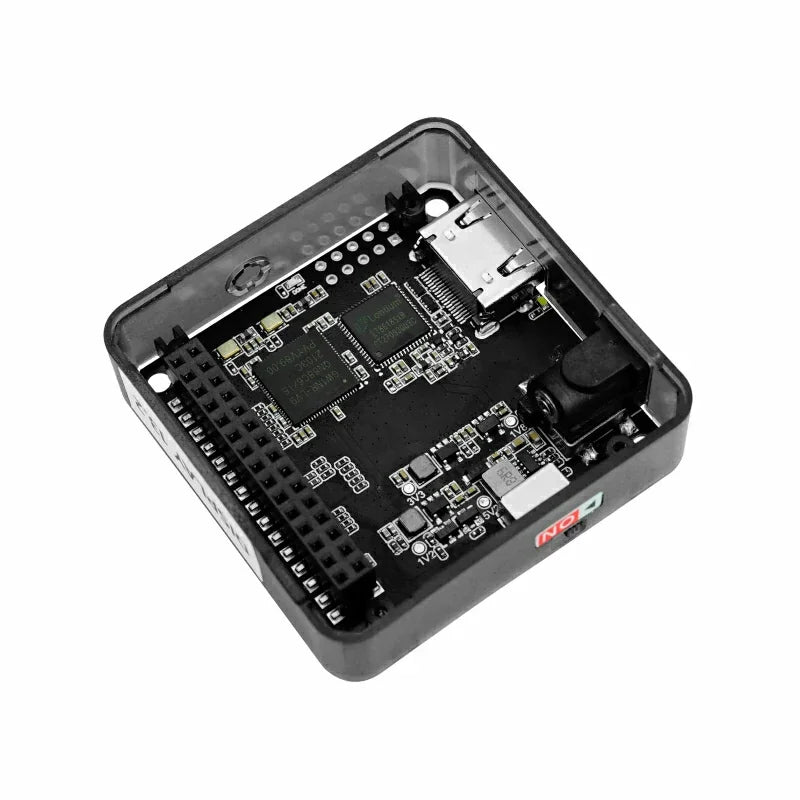

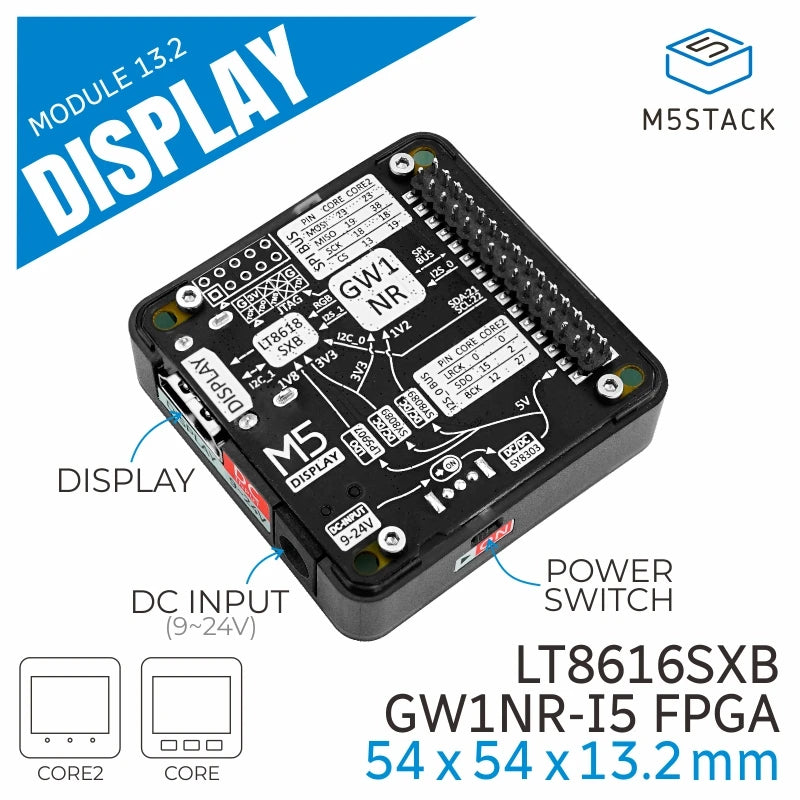

Display Module 13.2is an expansion module forHD audio and video, using GAOYUN GW1NR series FPGA chipto outputDisplay signal, and usingLT8618S chipas signal output conditioning, which can achieve24-bit color depth Display signalandup to 8-channel audio signaloutput, resolution up to 1080P, of which FPGA internally realizes I2S audio generation function. The module contains DC power input socketand correspondingDC-DC circuit, which can realize the power supply of the whole machine. This product is suitable for various programmable HD AV outputand other occasions.

Features

Supports 24-bit RGB input
Resolution up to 1080P
Supports up to 8 channels of audio input
Includes 9-24V to 5V, 3.3V and 1.2V DCDC circuits and 5V to 1.8V LDO circuits
HD audio and video interface, JTAG download interface

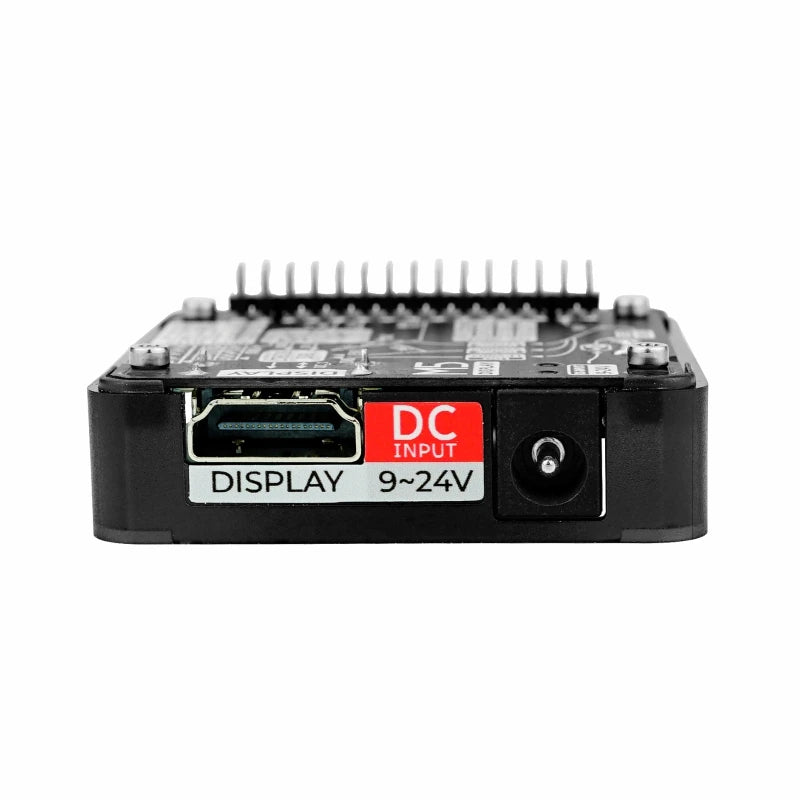

9-24V DC power interface
Power switch

Includes

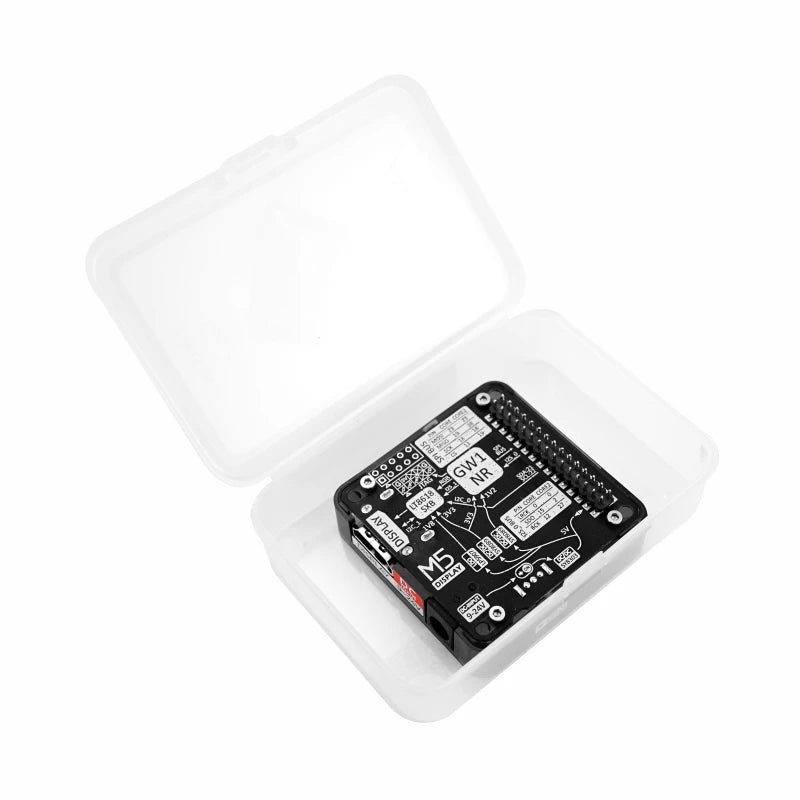

1x Display Module 13.2

Applications

Output HD audio and video signals
Human-machine interaction
